Stamped, fabricated, installed.
Seismic anchoring for tool installs and relocations across the South Bay. Mobile crew. 48-hour quotes.
Seismic anchoring for tool installs and relocations across the South Bay. Mobile crew. 48-hour quotes.
How we work
Send your tool model and drawings. We quote in 48 hours.
We fabricate to spec at our San Jose shop.
We install on your schedule, on your site.
Pre-engineered tool matrix
Anchorage details on file for common test, measurement, and environmental tools. If yours is in the matrix, design is same-day.
| OEM | Model | Dimensions (in) | Weight (lbs) |
|---|---|---|---|
| Espec | ESL-4CA | 59 × 60 × 84 | 1,095 |
| Heller | 1707 EXL Reflow | 134 × 63 × 60 | 3,000–3,500 |
| Despatch | Protocol 3 LCD1-51-5 | 41 × 46 × 28 (stacked 67) | 717 / 1,300 stacked |
| ICE | PNC2-16 | 43 × 46 × 92 | 600–1,200 |
| VWR | SP-2 1390FM | 36 × 36 × 78 | 300–600 |

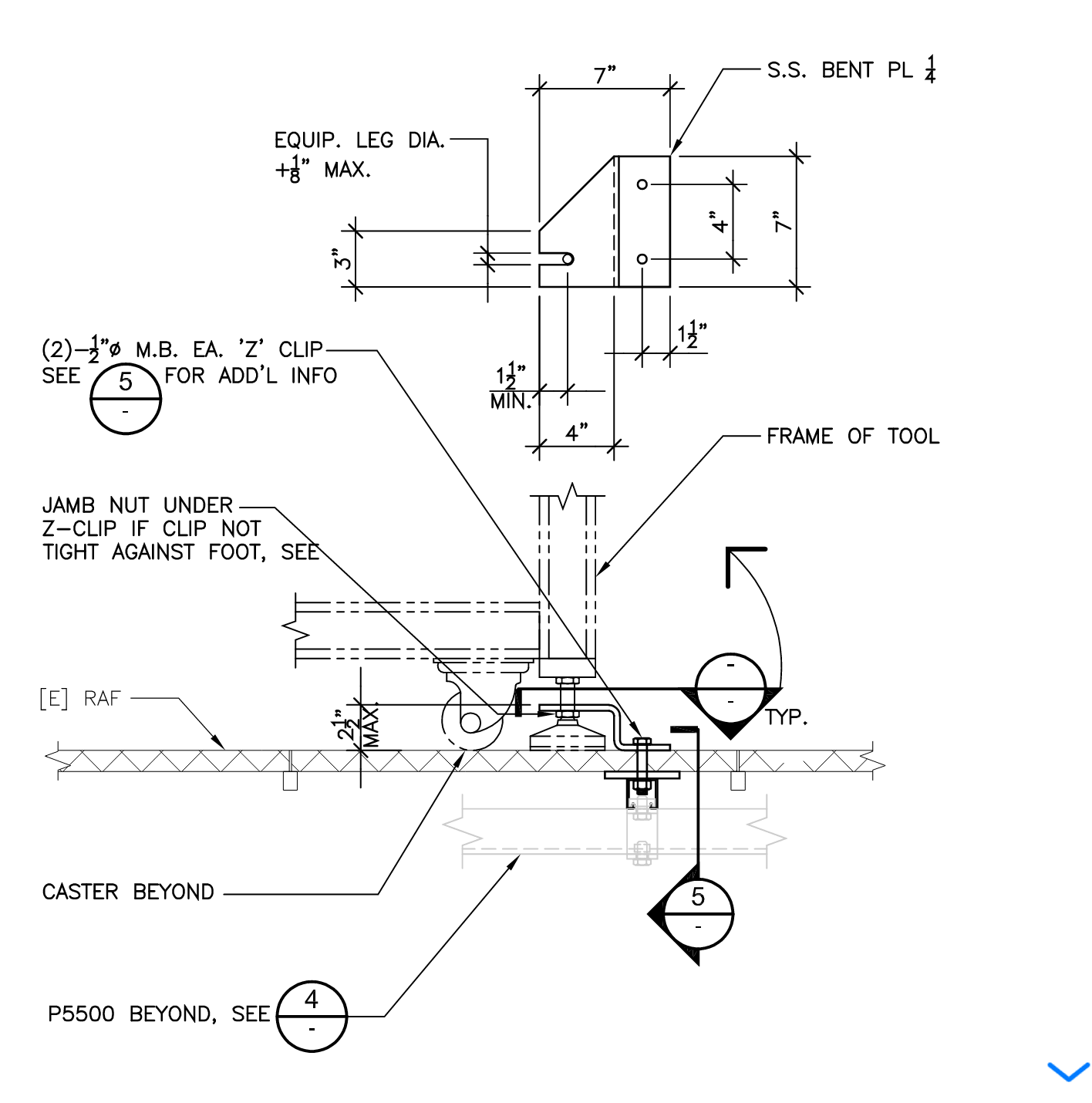

Not on the list? We pull manufacturer specs, run your seismic zone, and turn it over to our local structural engineers for stamped calcs and drawings. Turnkey from spec sheet to installed anchor.
Applications
Anytime Welding has fabricated and installed structural and architectural steel in San Jose since 1986. We hold four active CSLB licenses (C51, C60, C23, C17), are AWS-certified, ASTM-compliant, and ASME-aware. Our work has supported tool installations, cleanroom packages, and equipment anchorage across the South Bay tech corridor.
We partner with local structural engineers with deep Silicon Valley experience for stamped calcs and special-inspection coordination. Email reaches the owner directly.
